L3PRO Handheld Mini Laser Marking MachineL3PRO Handheld Mini Laser Marking MachineL3PRO Handheld Mini Laser Marking MachineL3PRO Handheld Mini Laser Marking Machine

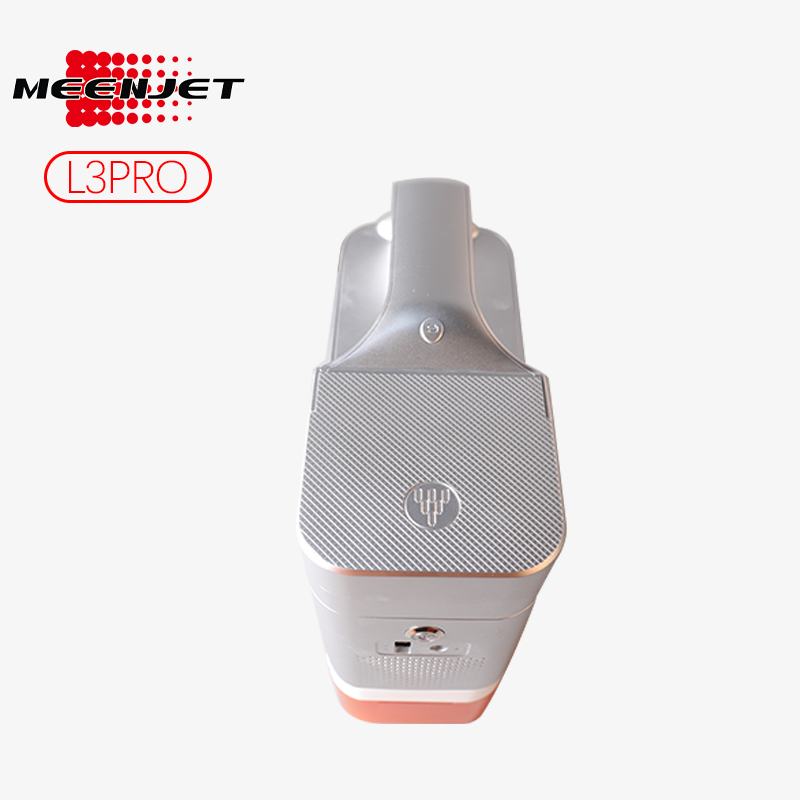

L3PRO Handheld Mini Laser Marking Machine


Meenjet L3 Mini Handheld Laser Marking Machine Printer

* Total New User Interface, more convenient and faster.

* With Adjustable laser intensity, support for grayscale printing.

* Support Import files through USB Disk.

* Removable super large capacity battery.

    • Description
  • Meenjet L3PRO Handheld Mini Laser Marking Machine

    Intelligent

    Built-In Embedded System, could edit the file on machine without connecting to a computer.

    Portable

    The Whole Machine weight is light, which is portable to carry and easy to operation.

    Visual Operation

    The New 5-inch High-definition Capactive touch screen with friendly interface. Could Operate Editing and Marking Easily.

    Easy Operation

    No need to adjust the focal length, Could finish editing and printing in one Step.

    Worry Free

    There is scale mark and red ray mark at marking area.


    No Cusumable Portable Laser Marking Machine

    Suitable for various materials. Printing on a wide range of content.

    Handheld Laser Marking Machine L3PRO

    Meet the needs of multiple industries

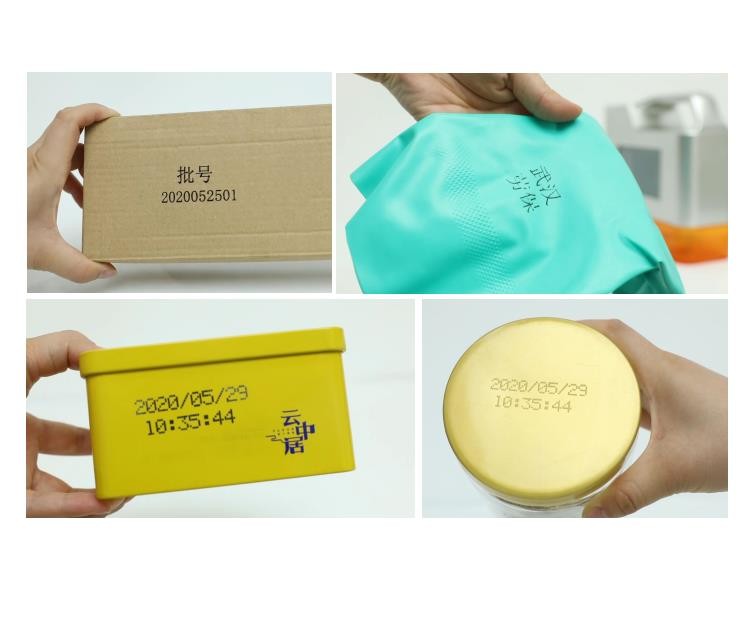

    Numbers, symbols, pictures, dates, QR codes, barcodes. All these content can be printed individually or in multiple combinations. Personalized design makes you easily print anything what you want to.


    Handheld Laser Marking Machine L3PRO

    One machine for multiple uses, suitable for different materials

    Common materials such as wood, plastic, and metal plates can be marked. One laser machine meets your multiple needs.

    Handheld Laser Marking Machine L3PRO

    Simple operation, you can use is when you get it

    5-inch high-definition touch screen design, function keys are clear at a glance. Print after only simple editing.

    Handheld Laser Marking Machine L3PRO

    Compact and portable, complete all operations with one hand

    Lightweight design, breaking the bulky and bulky drawbacks of traditional laser machines.

    The shape is only the size of an iPad. It can be easily lifted, taken away, edited and printed with one hand without any effort.


    Handheld Laser Marking Machine L3PRO

    Do whatever you want to achieve the desired effect

    According to different materials and printing requirements, the intensity and speed of the laser can be individually adjusted.

    Handheld Laser Marking Machine L3PRO

    Aperture positioning, accurate printing

    The print range can be previewed and confirmed before printing to reduce errors.

    Handheld Laser Marking Machine L3PRO


    Handheld Laser Marking Machine L3PRO

    Handheld Laser Marking Machine L3PRO

    Handheld Laser Marking Machine L3PRO

    Handheld Laser Marking Machine L3PRO





    • Parameter
  • Portable Laser Printer Operation System
    Linux
    Handheld Laser Machine CPUCortex-A9 quad core CPU
    Laser Energy
    5W
    Laser wavelength460nm
    Portabel Laser Marking Area
    50mm * 50mm
    Battery8550mAh Lithium
    InterfaceUSB
    Machine Dimension208.75 *163.25*85.6mm
    Portable Hand Laser Printer Weight2.5KG
    Laser Marking Machine Adapter AC Input 100 - 240V, DC Output 8.4V
    Hand Laser Printer LanguageSupport English, Simple Chinese, Traditional Chinese etc.
    Marking ContentText,Number,Date,Time, Symbol, QR Code, Bar code, DM Code, Logo and counter etc.
    Marking MaterialBoards, Carton, Building Material, Pipe, Metal, Plastic etc.


    Resources:

    L3PRO handheld mini laser marking machine specifications.pdf

    L3PRO Handheld Laser Coder User Manual.pdf
